Without Pollution FM200 Cabinet System No Pipeline Enclosed Flooding FM200 Fire Suppression System for Storage Room

FM200 (HFC-227ea) is a colorless, tasteless, non-corrosive, and electrically insulating extinguishing gas that leaves no residue or pollution after discharge. Its Ozone Depletion Potential (ODP) is zero, making it an environmentally friendly extinguishing agent. These properties allow it to be safely used in special locations where electrical fires are likely to occur.

Combined with the extinguishing device and electronic accessories, the entire system can be actuated automatically. It monitors the protected area through detectors and can trigger the extinguishing device via a solenoid actuator, achieving full automation. This eliminates the risk of an unnoticed fire and reduces the cost of staffing required to supervise the protected area.

The system is composed of the following components:

• Storage cylinder group and storage cylinder group frame
• Nitrogen driving device and nitrogen driving device frame
• Cylinder valve, liquid flow check valve, and air flow check valve
• Electromagnetic starter
• Gas conveying pipeline, collecting pipe, and choice valve
• Three links, reducing tee, reducing elbow, and flange
• Safety valve and pressure transmitter
• Pipes and nozzles
• Extinguishing chemicals
• Fire detector and fire controller
• Sound and light alarm, alarm bell, and gas light
• Emergency start / stop button

This system is suitable for protecting the following environments:

• Computer rooms and telecommunication rooms
• Transformer rooms and electrical switch and distribution rooms
• Generator rooms
• Leaching tanks and drying equipment
• Paint spraying booths
• Electrical instrument rooms and control centers
• Libraries, archives, and treasure troves of cultural relics

The cabinet-type FM200 fire suppression system offers several key benefits:

1. Swift response. Because there is no long-distance pipe transportation, FM200 gas is discharged directly into the protected zone. Its spraying time is less than 8 seconds, saving valuable time when a fire occurs.
2. Convenient installation. Compared with a pipe network system, the cabinet system is relatively simple to install. After mounting the control panels and electrical components, the remaining work is simply connecting them to one or more cabinet fire extinguishing devices. Note that a single room should not be matched with more than 4 units due to the output current limitation of a control panel.
3. Lower cost. For protection zones requiring only a single cylinder, the price is lower than a pipe network system because there is no need to account for the expense of pipes and pipe fittings, nor the associated labor costs.

The cabinet-type FM200 fire suppression system is easy to install due to its few components. A system is typically divided into two parts: the fire extinguishing device and the electrical elements. Because the electrical part is a single dedicated unit, the following description focuses on the fire extinguishing device.

The cabinet-type FM200 fire extinguishing device consists of FM200 agent, FM200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle, and cabinet.

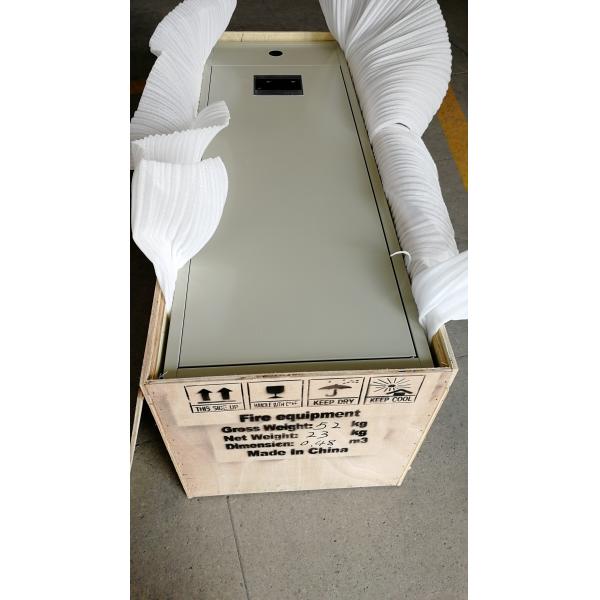

Products are packed with polyfoam first and then placed in wooden cases. If products are too large or a customer requires a pallet, we will prepare the products on a pallet. The following image shows our standard product packaging:

Guangzhou Xingjin Fire Equipment Co., Ltd. specializes in firefighting equipment using clean agent HFC-227ea. Our headquarters is located in Panyu District, Guangzhou, at the southern gateway of mainland China. Our company has established a complete and scientific quality management system. Our sincerity, powerful strength, and good quality are recognized throughout the fire industry. All staff at Xingjin welcome visitors from all directions and industries for visits, guidance, and business cooperation.

Our company specializes in all kinds of heptafluoropropane firefighting systems and aerosol firefighting systems. We possess an experienced research and development team with more than 20 years of work experience in the national firefighting career.

• An efficient sales and after-sales team is available to resolve all client questions in a timely manner.
• We provide 8×6 hours of technical support and service.
