Scalable Custom FM200 Gas Suppression System with 4.2Mpa Max Working Pressure for Data Rooms

FM200 (HFC-227ea) is a colourless, odourless, non-corrosive, and non-conductive clean agent that leaves no residue or pollution after discharge. It has zero Ozone Depletion Potential (ODP), making it an environmentally friendly fire extinguishing solution. These unique properties make it particularly suitable for protecting high-risk areas where electrical fires are likely to occur.

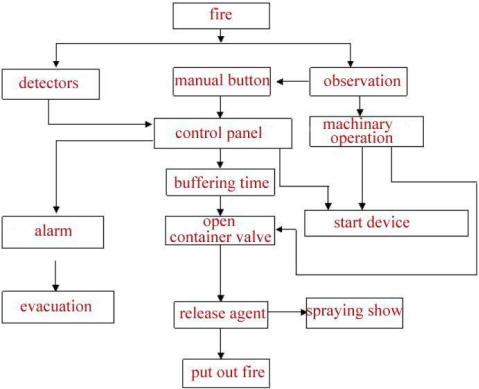

When combined with the extinguishing device and electrical accessories, the complete system enables fully automatic operation. Detectors continuously monitor the protected area, and upon detecting a fire, the system automatically activates the extinguishing device through the solenoid actuator. This fully automated process eliminates the need for on-site personnel to notice and respond to a fire, while also reducing labour costs associated with manual supervision of the protected area.

The FM200 pipe network system is suitable for a wide range of applications, including:

• Electronic computer rooms and data processing centres
• Telecommunications facilities and process control centres
• Expensive medical equipment rooms and industrial equipment rooms
• Libraries, museums, and art galleries
• Clean rooms and anechoic chambers
• Emergency power facilities and flammable liquid storage areas
• High-risk production areas such as paint spray booths, electrical equipment aging rooms, rolling mills, printing presses, oil switches, oil-immersed transformers, impregnation tanks, melting tanks, large generators, drying equipment, and coal pulverising systems in cement production
• Ship engine rooms and cargo holds

The FM200 pipe network automatic fire suppression system consists of three main sub-assemblies:

When these three integrated sub-assemblies work tog, the system delivers automatic fire detection, monitoring, alarm, and suppression capabilities with high efficiency.
