Hexafluoropropane suspended gas fire extinguishing system
Description:
The FM200 Hanging Fire Suppression System is a compact clean-agent fire protection solution designed for small spaces and critical equipment. It is widely used for electrical cabinets, control cabinets, server racks, UPS rooms, telecom rooms, and energy storage cabinets.
This system uses HFC-227ea (FM200) clean agent, which is non-conductive, residue-free, and safe for sensitive electronic equipment. It effectively suppresses fires at an early stage without causing secondary damage commonly associated with water or powder extinguishers.

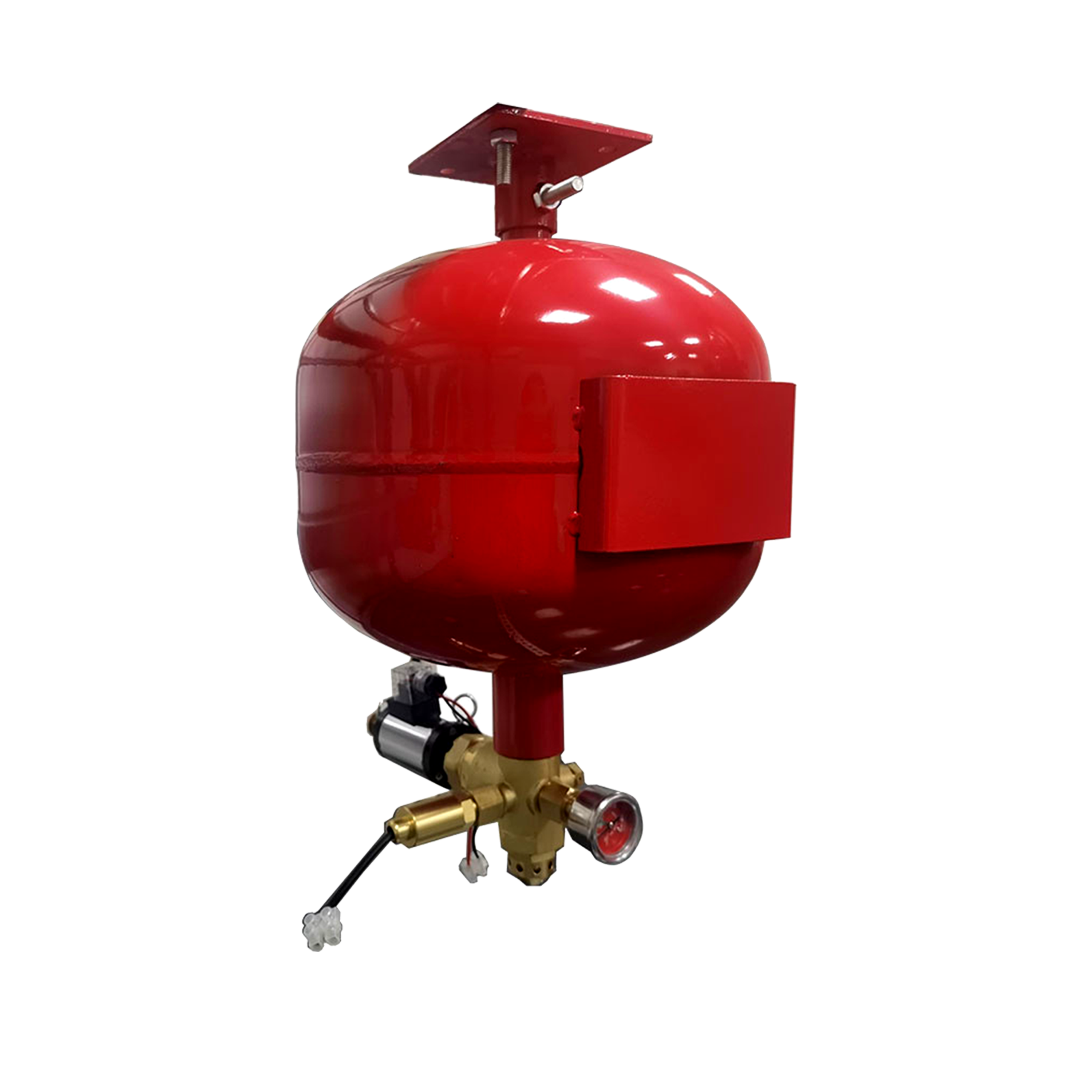

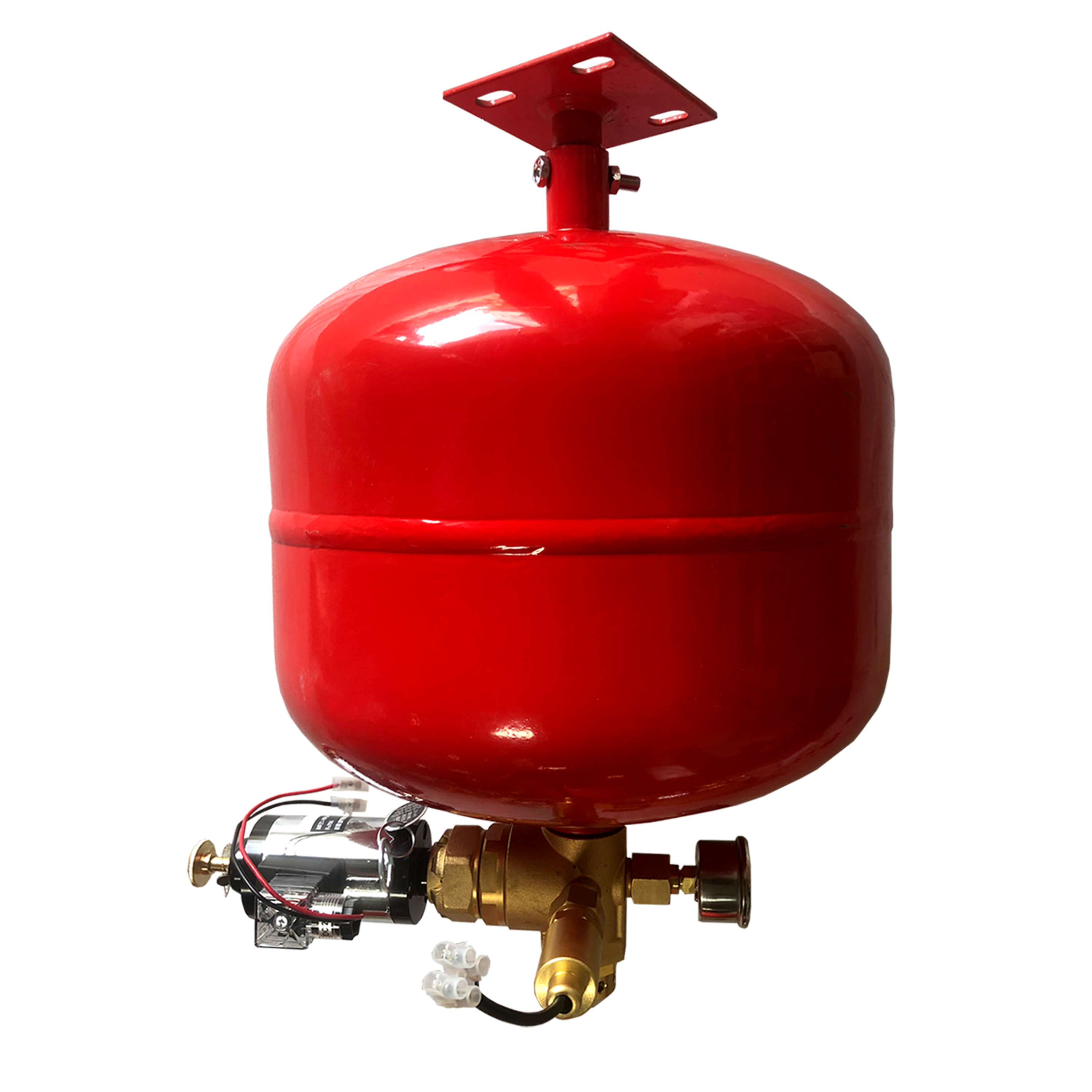

The FM200 hanging unit offers thermal activation (68°C) and solenoid activation (DC24V automatic or manual) options. The discharge time is ≤8–10 seconds, ensuring rapid fire suppression and high reliability. Cylinder sizes include 8L, 10L, 16L, 20L, and 30L, with a storage pressure of 1.6MPa and a maximum working pressure of 2.5MPa to suit various protection volumes.

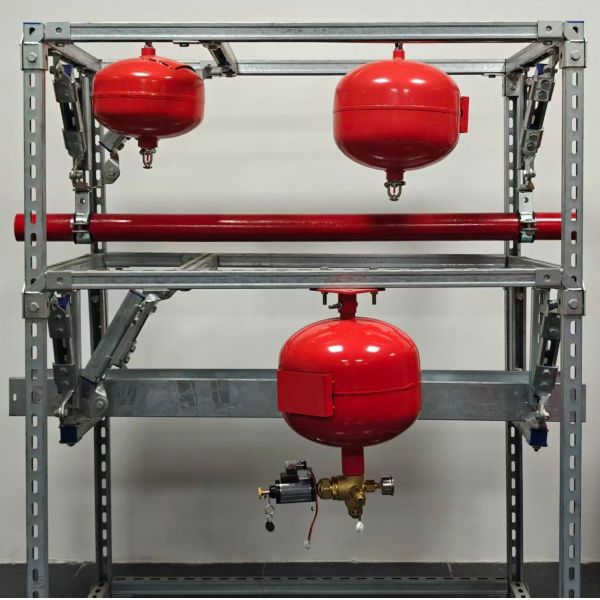

With wall-mounted or suspended installation, the system requires no piping network and is ideal for confined spaces or unmanned areas. It can be integrated with fire detectors, alarm panels, and audible-visual alarms for automatic release and signal feedback.
Parameters:
|
Model
|
Extinguishing agent charge
(kg)
|
Tank body Volume
(L)
|
20℃ Storage pressure
(MPa)
|
Jet time
(S)
|
Operating temperature
(℃)
|
Startup method
|
|
XQLW6/0.8
|
4
|
6
|
0.8
|
<10
|
0～50
|
Temperature sensing
|
|
XQLW8/0.8
|
8
|
8
|
0.8
|
<10
|
0～50
|
|
XQLW10/0.8
|
10
|
10
|
0.8
|
<10
|
0～50
|
|
XQLW20/0.8
|
20
|
20
|
0.8
|
<10
|
0～50
|
Key Benefits:
- Fast response with discharge time ≤10 seconds
- Clean agent, no residue, non-conductive
- Safe for sensitive electronic equipment
- Easy installation, no piping required
- High reliability and automatic activation
Typical Applications:
- Electrical and control cabinets
- Server racks and data centers
- UPS rooms and telecom rooms
- Rail transit electrical equipment
- Industrial control cabinets
- Energy storage cabinets and laboratories
External dimensions of suspended hexafluoropropane fire extinguishing device:
|
|
Product Model
|
Inner diameter of steel cylinderA
|
Cylinder heightB
|
|
XQR6
|
250mm
|
240±15mm
|
|
XQR8
|
250mm
|
280±15mm
|
|
XQR10
|
300mm
|
265±15mm
|
|
XQR20
|
350mm
|
340±15mm
|
Working principle:

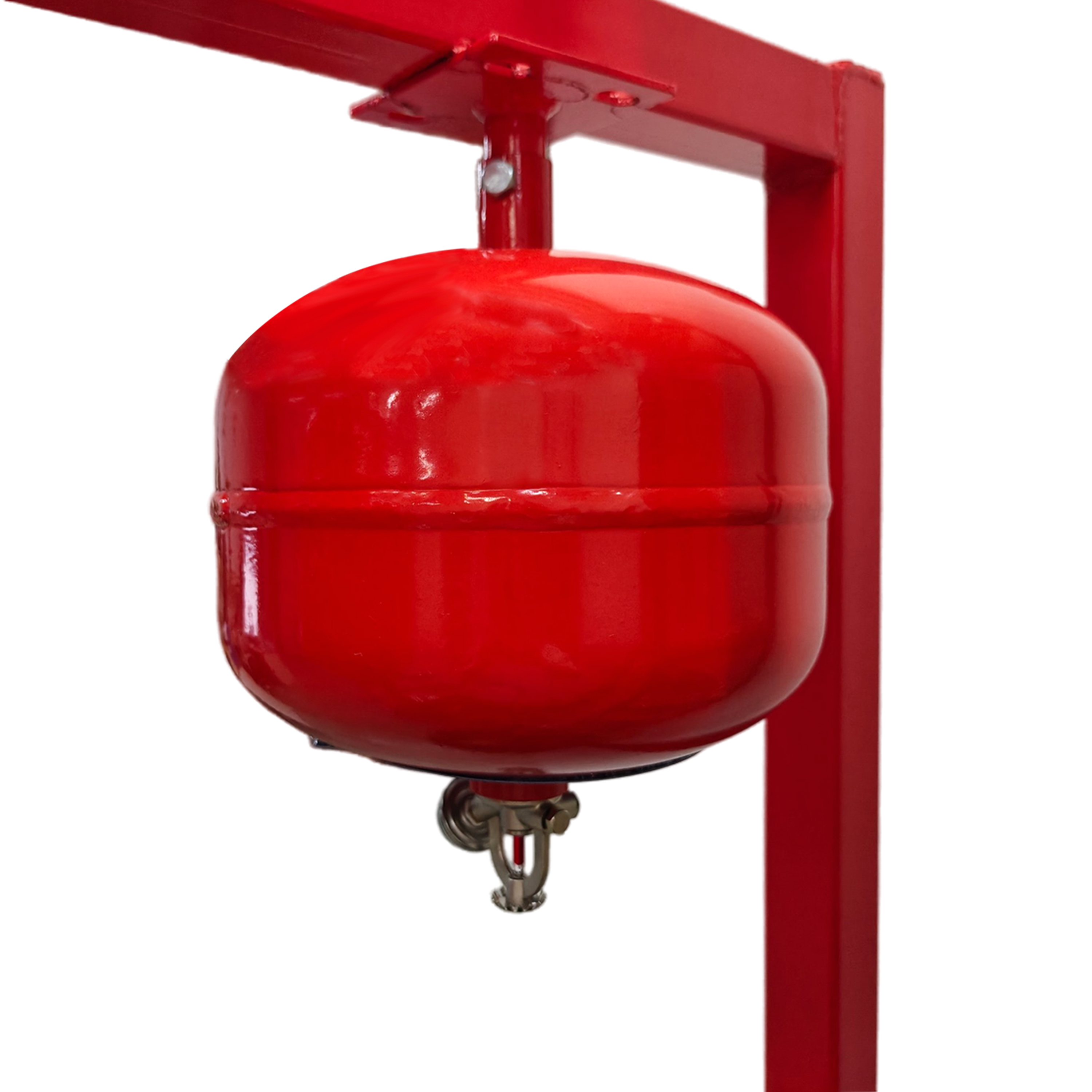

The hexafluoropropane suspended gas fire extinguishing device of our company is activated by a constant temperature method. The constant temperature suspended gas fire extinguishing device mainly relies on the constant temperature glass bulb of the valve to expand when heated during a fire, causing it to break and opening the valve to release the extinguishing agent. At the same time, the fire extinguishing device is installed above the protected area or on the surrounding walls, which does not occupy the ground space of the protected area.
Company Introduction:
Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
FAQ:
1. Are you a tradding company nor a manufacturer?
We are manufacturer.
2. How long will you use for a usual quantity order?
For usual order(40 pics), we often spend 15 working days in makeing; for some big orders, it is better to communicate with our saler.
3. In what way do you want the payment paid?
We accept all kind of payment way, but we will more grateful if you use simple ways like T/T or Paypal.
