Product Overview
FM200 Fire Trace Tube is a compact and highly efficient automatic fire suppression system designed for enclosed and high-risk environments such as electrical cabinets, server racks, and control panels. Utilizing clean agent FM200 (HFC-227ea), the system ensures rapid fire detection and suppression without residue, damage, or downtime.

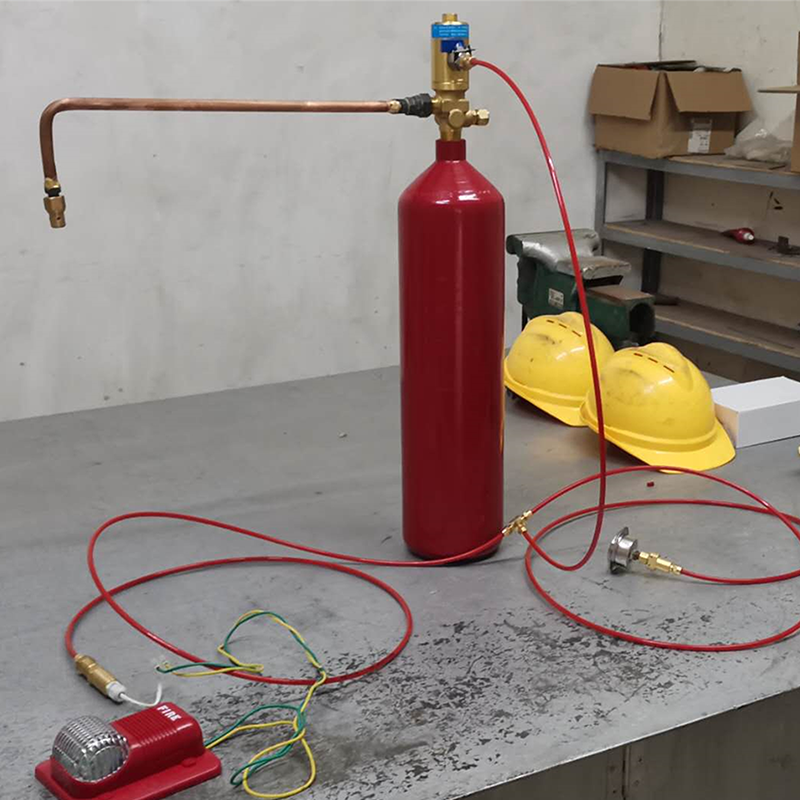

The system integrates fire detection and extinguishing in one unit through a pressurized tube. When exposed to heat or flame, the tube bursts at the hottest point and releases FM200 directly onto the fire source — achieving precise, automatic fire suppression without electricity or manual intervention.
Key Features
- Automatic Detection & Suppression — No need for power or manual operation
- Fast Response — Discharge completed within 8 seconds
- Clean Agent (FM200) — No residue, non-corrosive, safe for electronics
- Compact & Space-Saving — Ideal for small enclosures and cabinets
- Flexible Installation — Easy to install inside various equipment
- Environment-Friendly — Zero ODP, no pollution
Fire Probe Tube Parameters
| Outer Diameter |
Inner Diameter |
Wall Thickness |
Density |
Melting Point Temperature |
| Φ6mm |
Φ4mm |
1.0mm ±0.1mm |
1.05g/cm³ ±0.1g/cm³ |
170℃ ±10℃ |
Device Technical Parameters
| Device Type |
Release Type |
Nominal Working Pressure |
Maximum Working Pressure |
Operating Temperature Range |
Minimum Agent per Unit Volume |
Max Fire Probe Tube Length |
Max Release Tube Length |
Max Filling Coefficient |
| Heptafluoropropane temperature-sensitive automatic fire extinguishing device |
Direct form |
2.5 MPa |
4.2 MPa |
(-10 ~ 50)℃ |
0.7 kg/m³ |
25 m |
-- |
1.12 kg/L |
Device Type and Model
| Device Type |
Model Specification |
Agent Filling Volume (kg) |
Effective Protection Scope (m³) |
Max Fire Probe Tube Length (m) |
Max Release Tube Length (m) |
Release Type |
| Heptafluoropropane temperature-sensitive automatic fire extinguishing device |
WZ-Q/T-QZ3-XJ60 |
3 |
4.2 |
25 |
-- |
Direct form |
Performance Characteristics
First, the fire extinguishing agent delivery tube performs three functions — fire detection, device activation, and agent release — eliminating the need for separate fire alarm and detection devices. This reduces costs and installation difficulty, greatly improves the reliability of the extinguishing device, and avoids false operation of electrical control alarm components.
Second, this device implements full-coverage fire extinguishing only for equipment that has already caught fire, quickly extinguishing the fire in a point-to-point manner. This changes the situation where traditional gas fire extinguishing systems extinguish the entire equipment space regardless of the size of the fire, resulting in slow detection response time and excessive use of extinguishing agents.
Third, the fire detection tube can be laid inside equipment and instruments that may catch fire, enabling the fastest detection of fires and the fastest point-to-point suppression of only the burning parts. This results in faster response time, less extinguishing agent consumption, lower costs, and greater environmental friendliness.
From these three characteristics, it is clear that the temperature-sensing self-starting extinguishing device is a more scientific fire extinguishing method — in terms of improving extinguishing efficiency, saving costs, and environmental protection — compared with current fixed fire extinguishing devices, especially solid gas extinguishing devices.
Technical Specifications
- Agent Type: FM200 (HFC-227ea)
- System Type: Direct / Indirect Fire Trace Tube

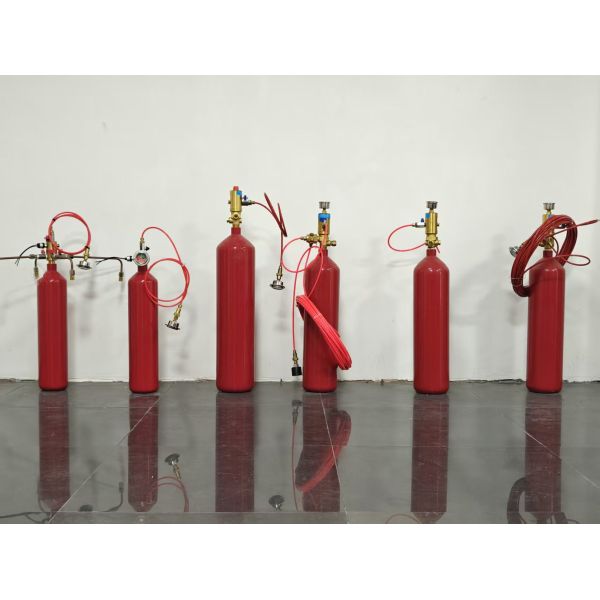

- Agent Capacity: 2kg / 3kg / 4kg / 6kg / 9kg / 12kg
- Working Pressure: 2.5 MPa
- Max Pressure: 4.2 MPa
- Working Temperature: 0°C – 50°C
- Detecting Tube Length: 5m – 25m
- Releasing Tube Length: 0.5m – 1.5m
- Density: 0.7 kg/m³
System Application Scope
The temperature-sensing automatic fire extinguishing device has solved the long-standing problem in the fire protection field regarding the prevention of fires in spaces such as electrical equipment, control boxes, and distribution boards that are prone to fire. Currently, this device has been widely applied in domestic systems such as power plants, communications, broadcasting and television, petrochemicals, and railways, and has accumulated a large amount of successful experience.
1. Suitable Locations for Fire Extinguishing
- Microwave rooms, decimeter wave rooms, meter wave rooms, power distribution rooms, and uninterruptible power supply rooms in radio and television stations
- Switching exchange rooms, control rooms, and signaling transfer point rooms of communication systems
- Control rooms, electronic equipment rooms, computer rooms, relay rooms, and power distribution rooms of power plants
- Cable intersections, dense areas, and intermediate joints
- Power distribution cabinets, elevator control cabinets, cable trays with troughs or bridges
- Special or important cabinet equipment with relatively enclosed enclosures in other places
2. Types of Fires That Can Be Extinguished
2.1 The automatic fire extinguishing device filled with heptafluoropropane can be used to extinguish the following fires:
- Flammable gas fires that can cut off the gas source before extinguishing
- Fires of Class A, B, and C liquids or molten solids such as paraffin and asphalt
- Surface fires of solids and partial deep-position fires of cotton, wool, paper, and other solid materials
- Electrical fires
2.2 The automatic fire extinguishing device filled with heptafluoropropane shall not be used to extinguish the following fires:
- Fires of chemical products containing oxidants such as nitrocellulose and gunpowder
- Fires of active metals such as potassium, sodium, magnesium, titanium, and zirconium
- Fires of metal hydrides such as potassium hydride and sodium hydride
